Understanding DC Motor Duty Cycles: S1, S2, and S3

If you look through Pinghao’s product catalog, you’ll notice that some DC motors are rated for S1 duty, while others are rated S2 2.5 min. S2 and S3 also frequently appear together, for example, S2 2.5 min – S3 9% ED.

What do these ratings actually mean?
The International Electrotechnical Commission (IEC 60034-1) and the Chinese national standard (GB/T 755) classify motor operating conditions into ten “duty cycles”, designated S1 through S10:

• S1: Continuous Duty. The motor operates at a constant load long enough to reach thermal equilibrium.
• S2: Short-time Duty. The motor operates at a constant load for a specified time, followed by a rest period to cool down to ambient temperature.
• S3: Intermittent Periodic Duty. The motor operates in a series of identical cycles, each consisting of a run time and a rest time.
• S4: Intermittent periodic duty with starting.
• S5: Intermittent periodic duty with electric braking.
• S6: Continuous operation periodic duty (alternating between load and no-load without rest).
• S7: Continuous operation periodic duty with electric braking.
• S8: Continuous operation periodic duty with related speed changes.
• S9: Duty with non-periodic load and speed variations.
• S10: Duty with discrete constant loads.

For hydraulic machinery, the most common ratings are S1, S2, and S3. These determine whether a motor can run continuously, needs cooling breaks, and fits the rhythm of your specific application.

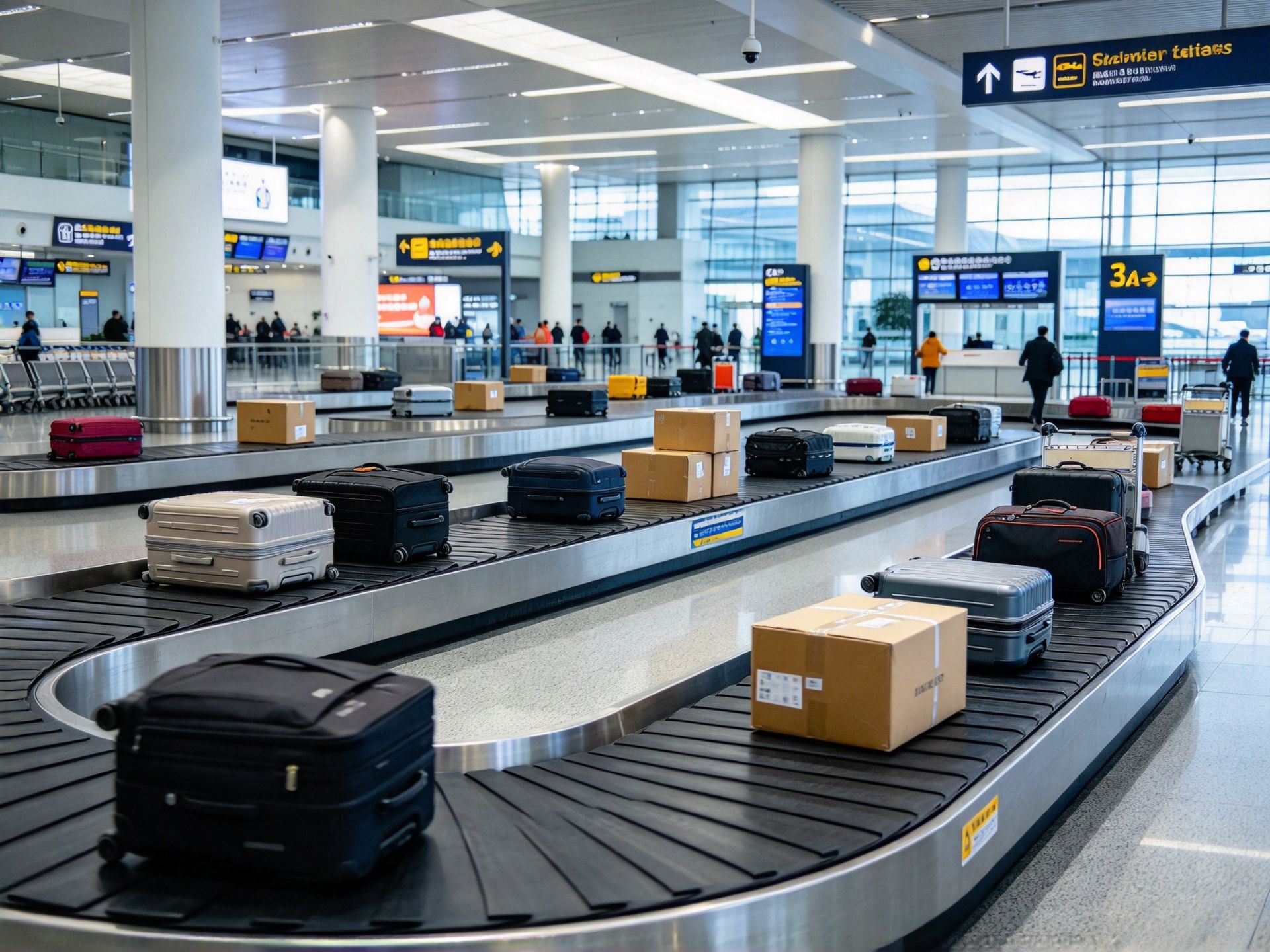

S1: Continuous Duty (Run It All Day)
S1 means the motor can run at a constant load until its temperature stabilizes. In simple terms, as long as the voltage, load, and cooling conditions match the nameplate specs, an S1 motor can run indefinitely.

This is ideal for applications like fans, pumps, conveyor belts, and hydraulic power units that need to stay on for long periods.

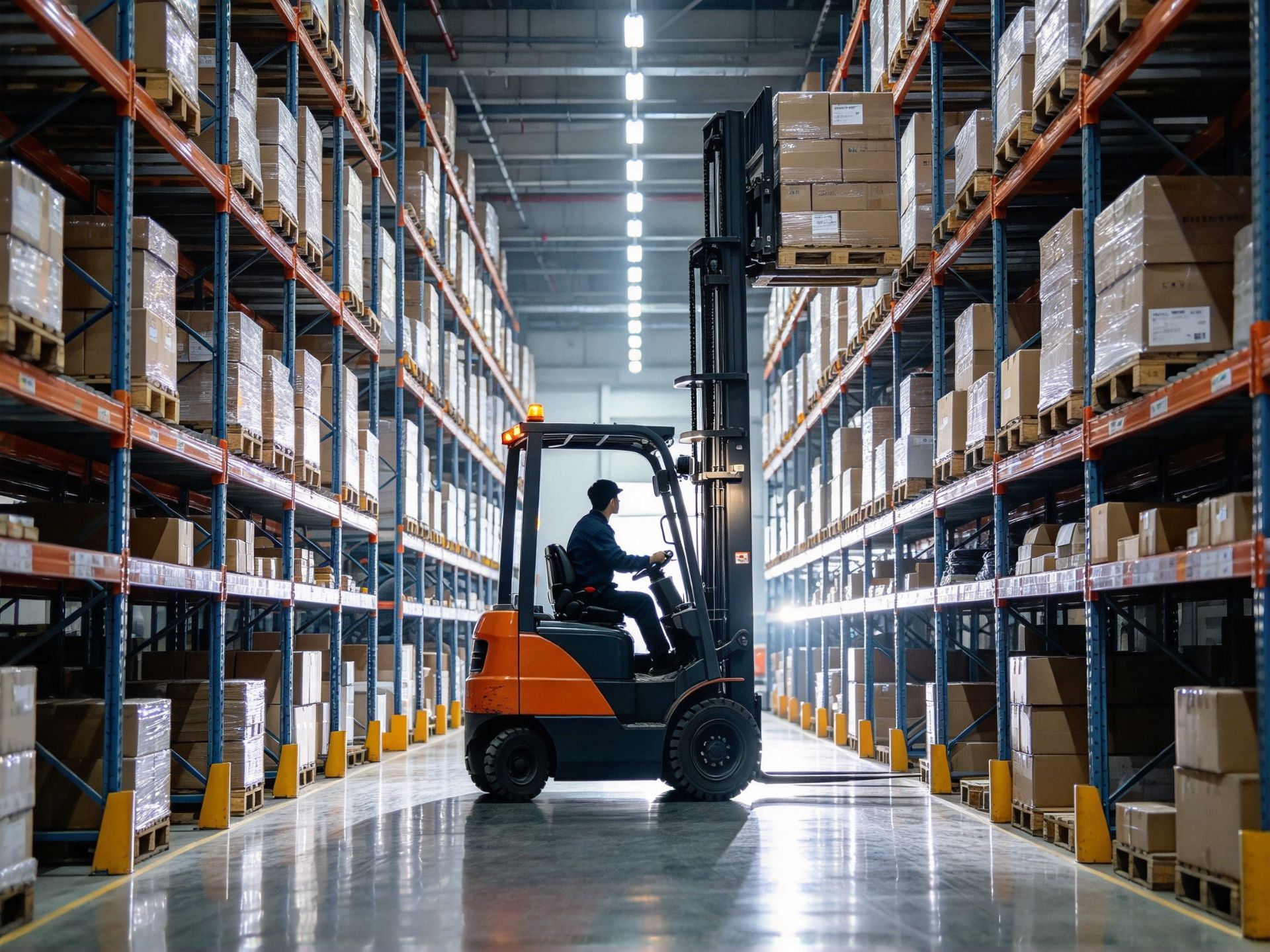

S2 2.5min: Short-time Duty (Not “Only 2.5 Minutes”)
S2 is a short-time rating. The motor runs at a constant load for a set time, but not long enough to reach thermal equilibrium. Afterward, it must be switched off to cool down completely before the next run.

“S2 2.5min” means the motor is designed to run at its rated load for 2.5 minutes at a stretch. Once that time is up, it needs a break. If you keep it running beyond this limit without cooling, heat will build up, potentially damaging the insulation or burning out the motor.

In the real world, S2 2.5min is perfect for hydraulic mechanisms with short bursts of action, such as:

• Lifting a hydraulic platform once.
• Clamping a fixture.
• Opening or closing a valve/gate.
• Short-term loading on test benches.

Note: While standard S2 times are often 10, 30, 60, or 90 minutes, 2.5min is a specific rating tailored by the manufacturer for certain hydraulic tasks. Always check the nameplate.

S3 9%ED: Intermittent Duty (The 9% Rule)
S3 is for motors that work in repeated cycles of running and resting. ED stands for a German word, Einschaltdauer, that is, duty cycle.

S3 9%ED means that within a single cycle, the motor is under load for only 9% of the time, while the remaining 91% is rest/cooling time. For example, in a 10-minute cycle, the motor runs for about 0.9 minutes and rests for 9.1 minutes.

This doesn’t mean it canonly run for 9 seconds total; it describes the ratio of power-on time within a repeating cycle. This is common in punch presses, cranes, and hydraulic machinery with frequent start-stop actions, like:

• Spot pressing on hydraulic presses.
• Repeated clamping/unclamping on automated lines.
• Short-stroke feeding mechanisms.

How to Choose?

Duty Cycle	Meaning	Key Takeaway
S1	Continuous Duty	Can run 24/7. Best for constant, long-duration loads.
S2 2.5min	Short-time Duty	Run for 2.5 mins, then cool down. Do not run continuously.
S3 9%ED	Intermittent Duty	Run 9% of the time, rest 91%. Ideal for frequent start-stop cycles.

The Bottom Line:
Don’t just look at power and voltage; match the duty cycle to your actual working conditions.

Using an S2 or S3 motor as if it were S1 will likely lead to overheating and failure.

Conversely, using an S1 motor for short bursts is generally reliable but might be overkill depending on your cost and space constraints.
