PMDC vs. Series DC Motor: Which One Is Better?

If you’ve ever stared at a DC motor and wondered, “What’s your deal?” you’re not alone.

DC motors come in many flavors, but two of the most common, and most misunderstood, are the Permanent Magnet DC (PMDC) motor and the Series DC motor.
At first glance, they look the same. They both spin, right? Not quite. They both get the job done. But inside the housing, they have very different personalities.
Let’s meet them.

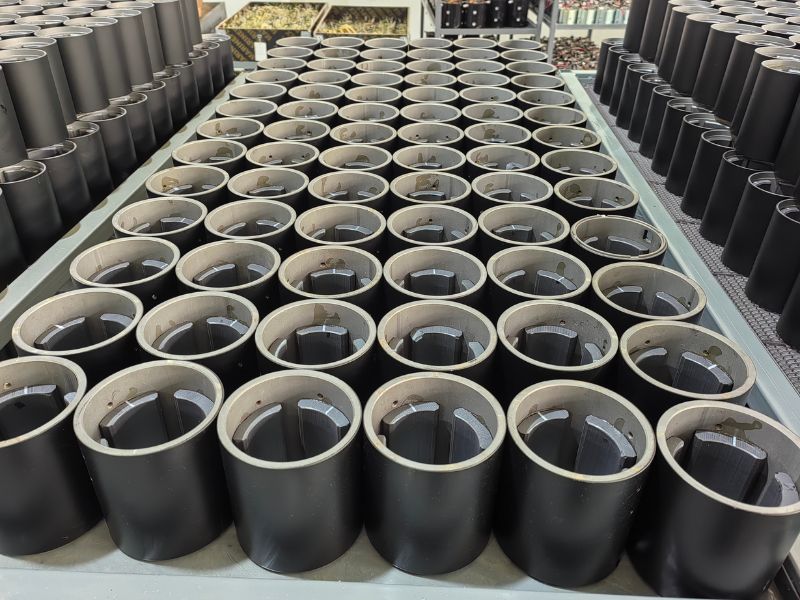

The PMDC Motor: The Efficient Professional

The PMDC motor is like that colleague who always shows up on time, keeps things tidy, and never makes a fuss. It uses permanent magnets to create the stationary magnetic field, no field windings, no drama.

Because of this simple design, PMDC motors are:

• Compact and lightweight
• Energy-efficient
• Easy to control
• Great for applications that need steady, predictable performance

You’ll find them in windshield wipers, power windows, small pumps, electric tools, and plenty of everyday devices that just need to work reliably.

Their speed-torque curve is relatively linear, which means they behave nicely when you ask them to speed up or slow down. If your application values efficiency, size, and control, the PMDC motor is usually a smart choice.

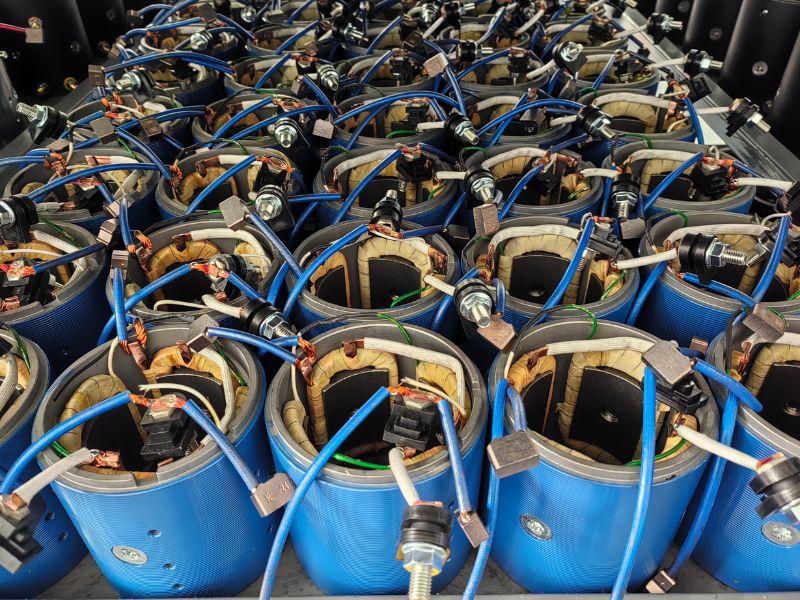

The Series DC Motor: The Heavy Lifter

Now meet the Series DC motor. If the PMDC is the efficient professional, the Series DC motor is the gym enthusiast who insists on lifting the heaviest thing in the room.
In a Series DC motor, the magnetic field is created by electric current — not permanent magnets. Current flows through windings mounted on the stator, connected in series with the armature. That means the same current passes through both. The result? Serious starting torque.
This motor doesn’t whisper. It grunts, pulls, and gets heavy loads moving.

That’s why Series DC motors are commonly used in:

• Cranes and hoists
• Winches
• Electric traction systems
• Starter motors
• Heavy-duty industrial equipment

They’re not always the most efficient option, and their speed can rise dangerously if the load is removed. But when you need brute force at startup, few motors can match them.

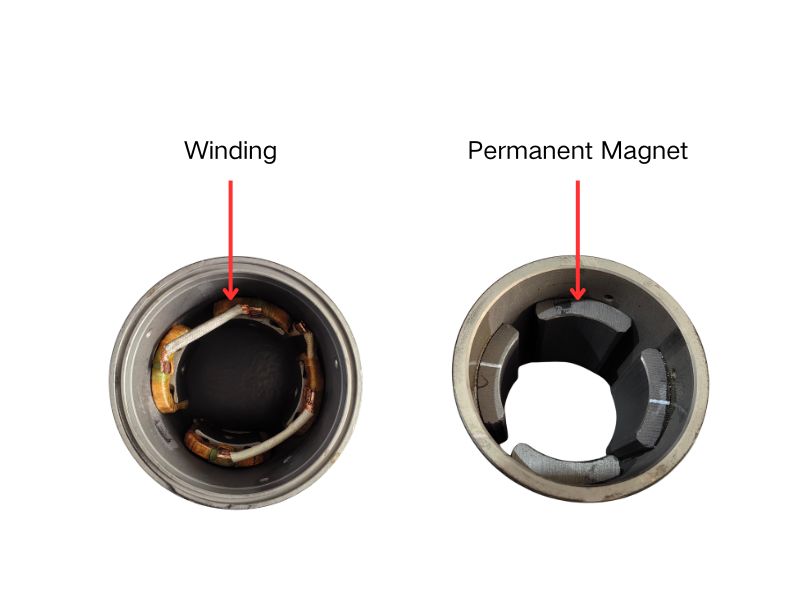

So, What’s the Real Difference?
Think of it this way:
A PMDC motor is efficient, compact, and well-behaved. It’s great when you want clean performance and easy control.
A Series DC motor is powerful, rugged, and torque-hungry. It’s built for situations where moving a heavy load matters more than saving a few watts.
One is the reliable office worker. The other is the forklift driver who can move your entire warehouse before lunch.

Which One Should You Choose?
If your priority is efficiency, compact design, and smooth control, go with a PMDC motor.
If your priority is high starting torque and heavy-load performance, the Series DC motor deserves a closer look.
Both have their place. Both have their strengths. And both will keep spinning — as long as you ask them the right questions.
