Heavy traction power with ultra-high starting torque, engineered for battery-operated industrial vehicles.
Series-wound construction provides strong low-speed pulling force, great for AGVs, tow tractors, electric winches and mini stackers. No permanent magnets, so it withstands heavy vibration and high temperatures with no demagnetization risk.

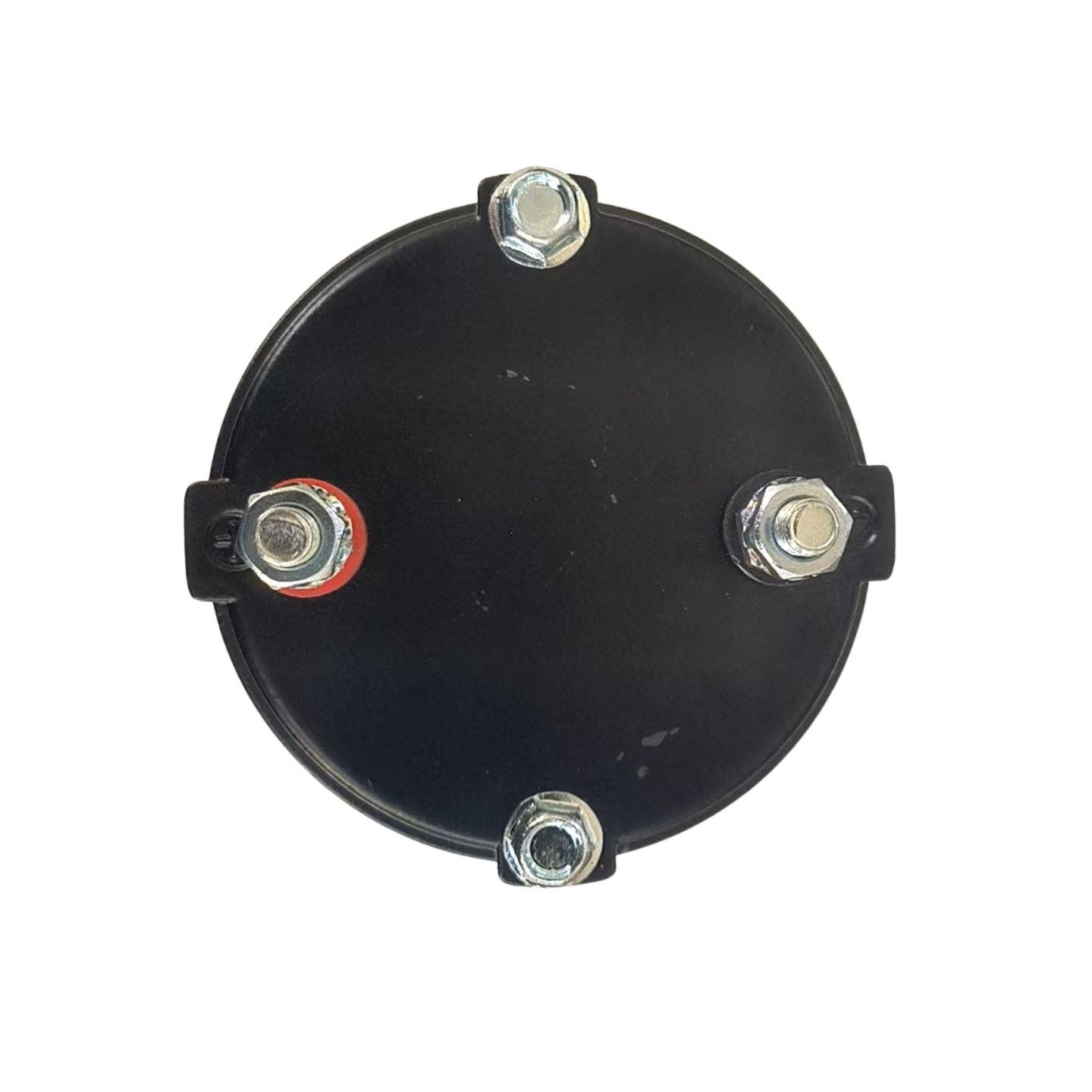

Rotation reversible by switching armature terminals. A reliable, economical drive solution for warehouse and on-site heavy hauling equipment.

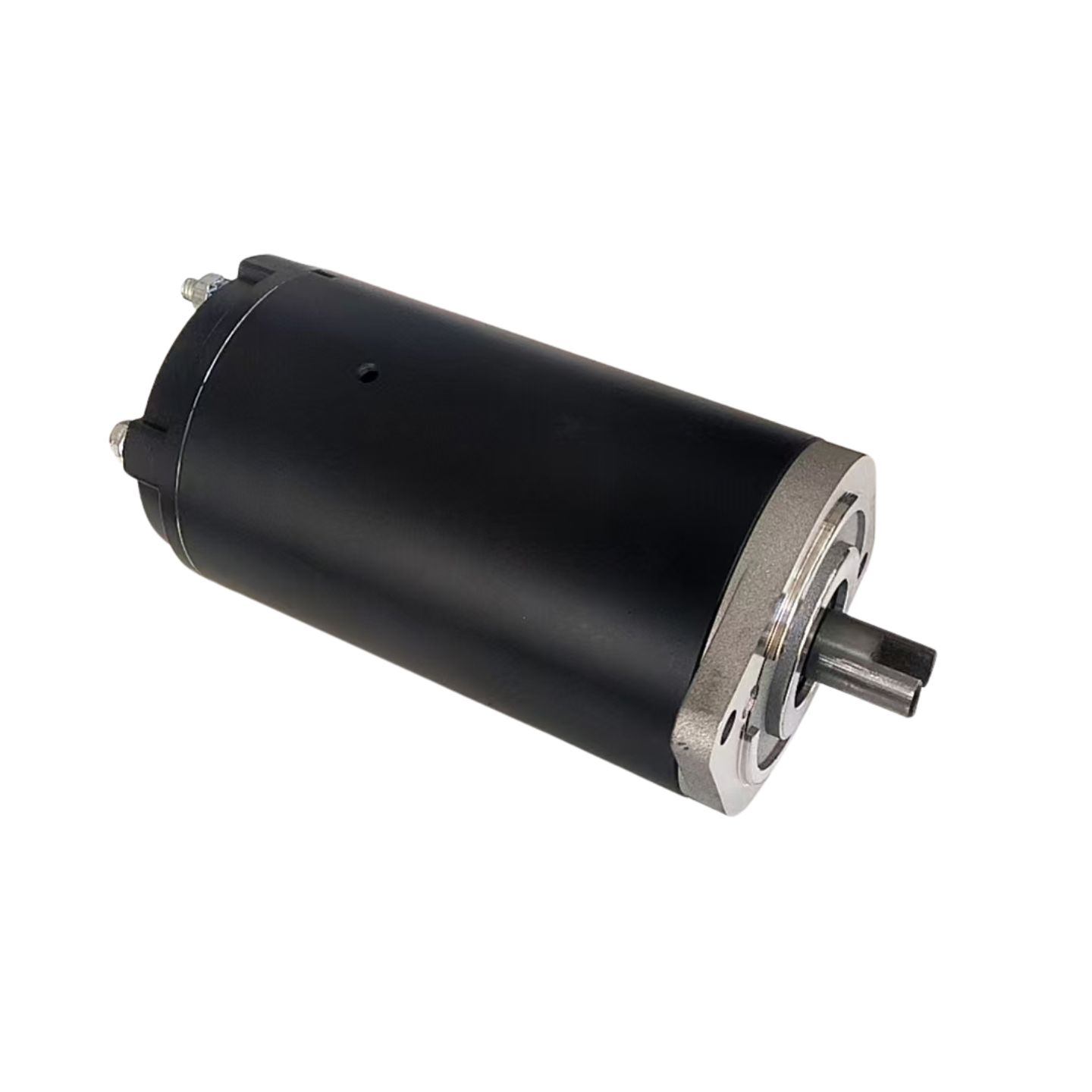

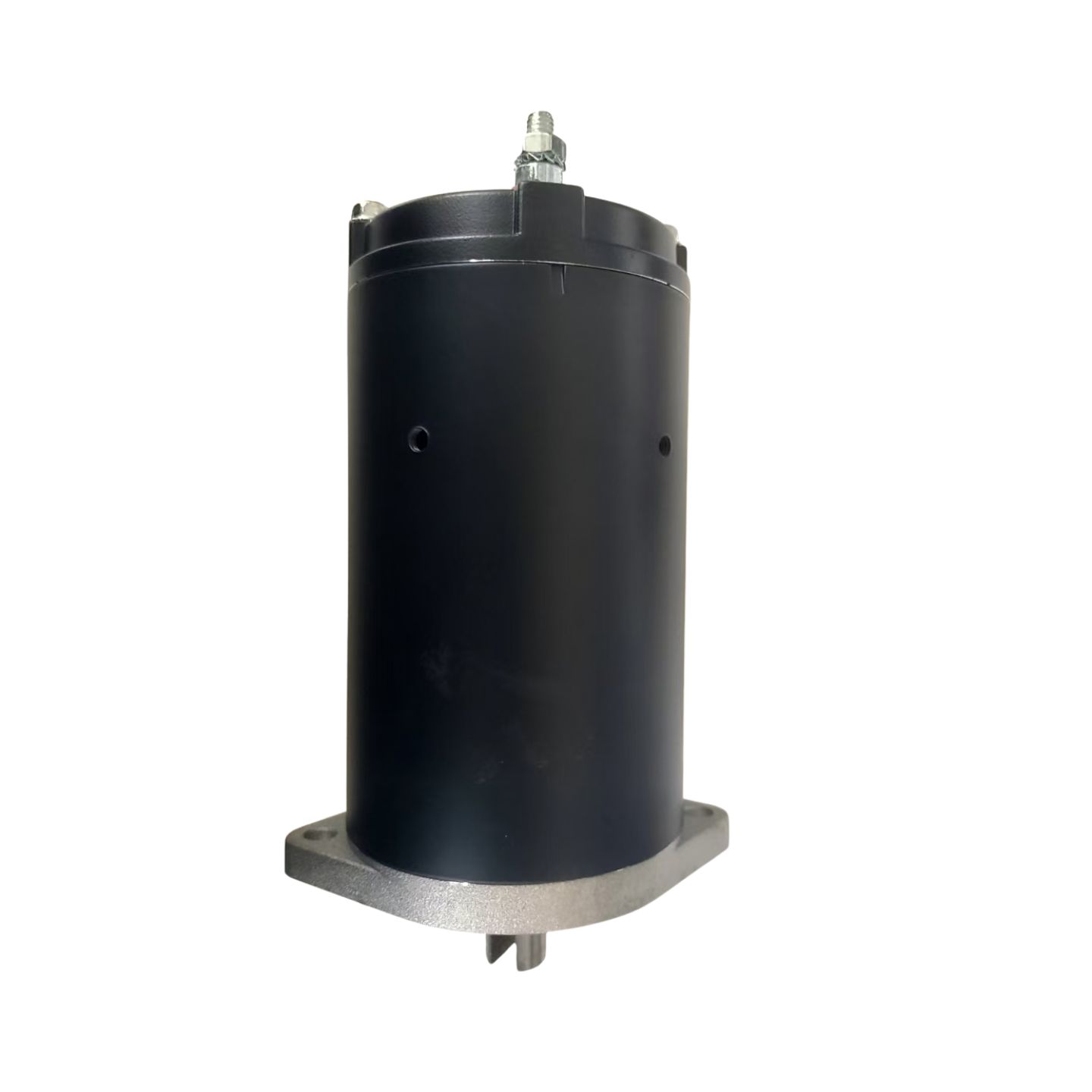

Pinghao offers this model of DC Motor with the following specifications:
Type: ZDY1505AH-1505
Commutation: Brushed DC Motor
Voltage: 12V
Power: 0.8kW
Current: 110A DC
Torque: 2.0N.m
Excitation Type: Permanent Magnet
Working Mode: S2 2.5min – S3 8%ED
Insulation: F
Waterproof: IP54
Poles: 4
Speed: 2700 RPM
Shaft Type: Slotted
Rotation: Clockwise
Winding: 100% pure copper
Dimensions:
Weight: 2.6kg
Certification: CE
Nameplate: Customizable
Packaging: Customizable
Exterior Color: Customizable
Shaft Extension: Customizable

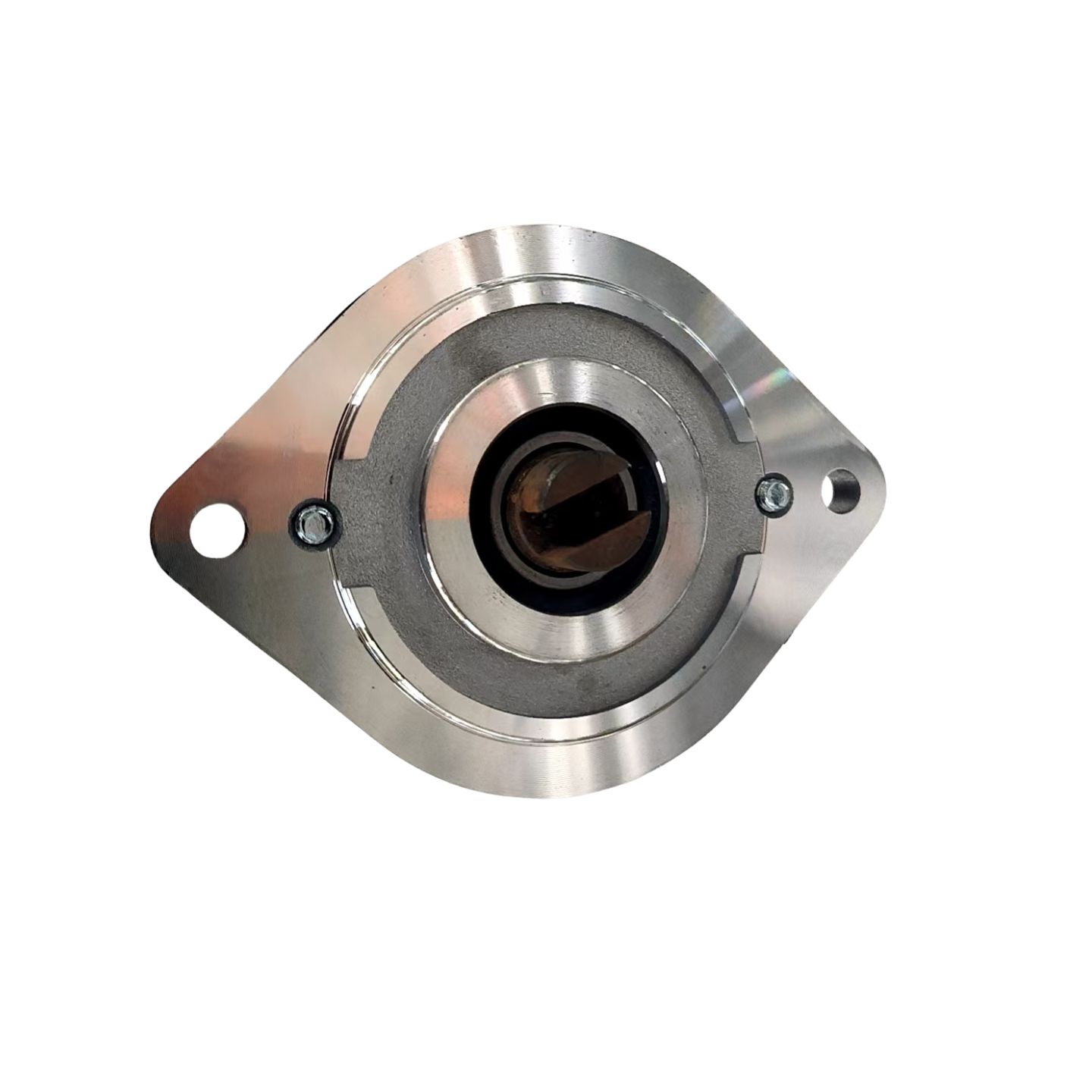

Flange: Customizable
27 years of DC motor manufacturing expertise.
OEM/ODM supported.
Custom voltage, speed, shaft and mounting configurations available.
ISO 9001-compliant quality assurance procedures.
CE certified.
100% inspection before shipment, see how.
Technical support and after-sales service provided.
