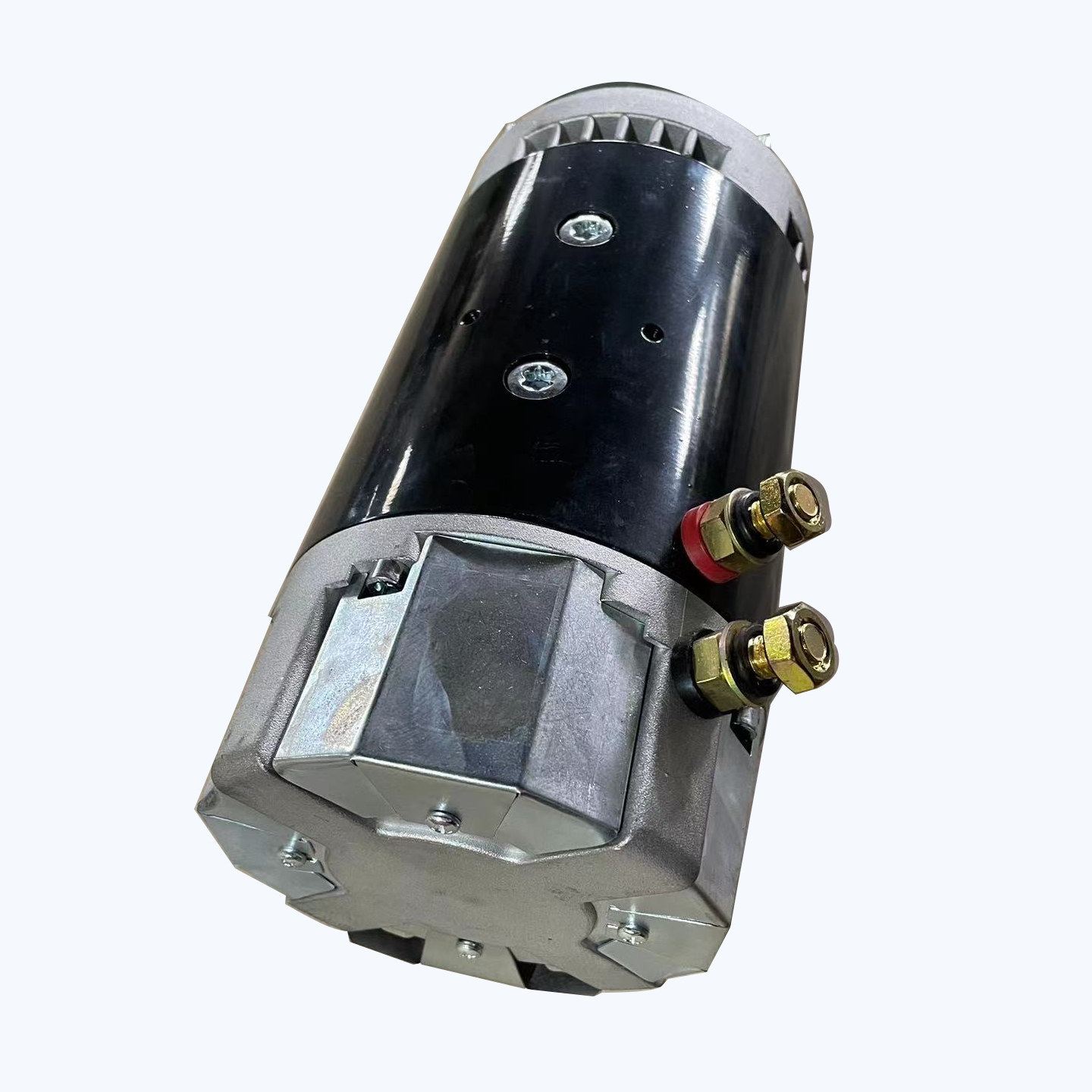

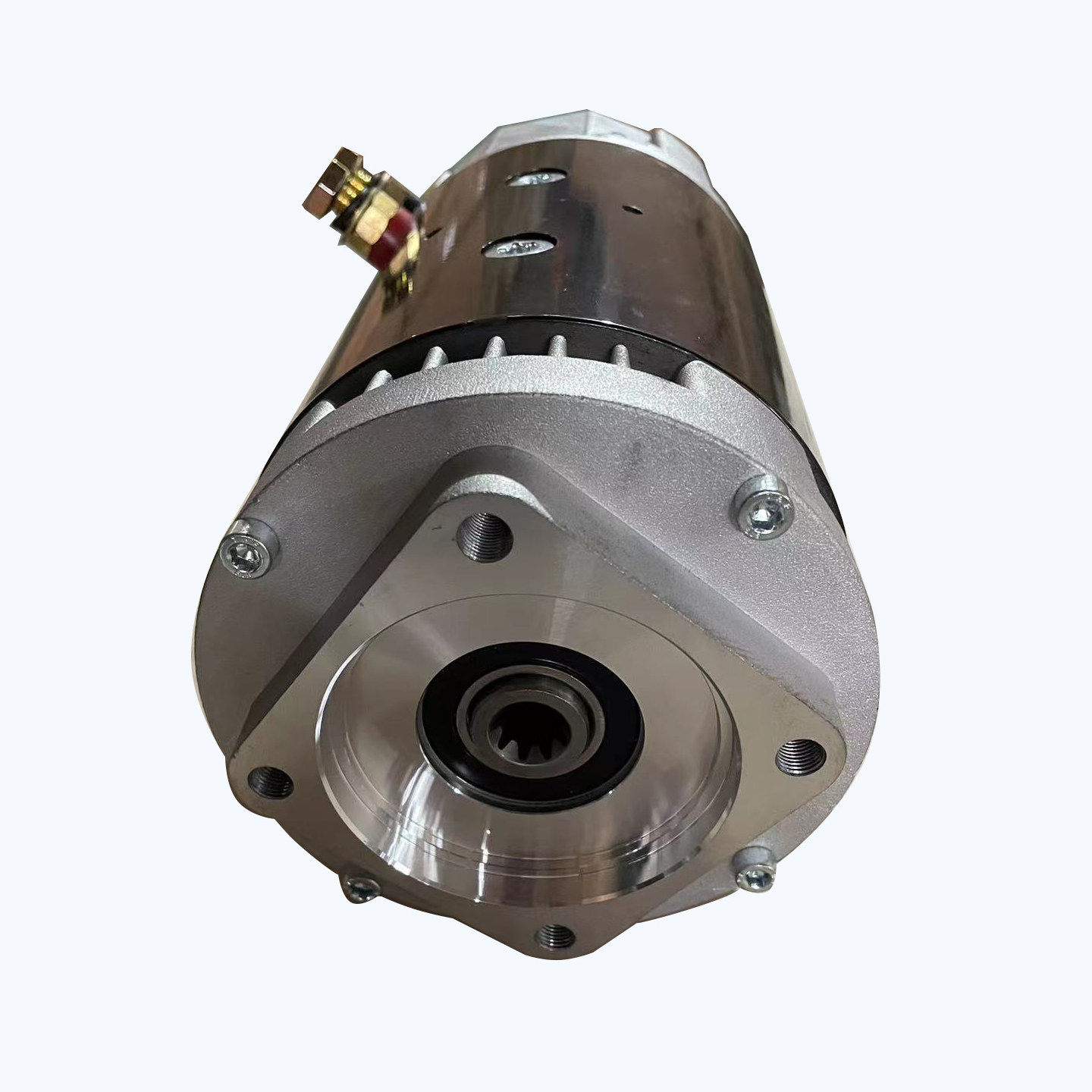

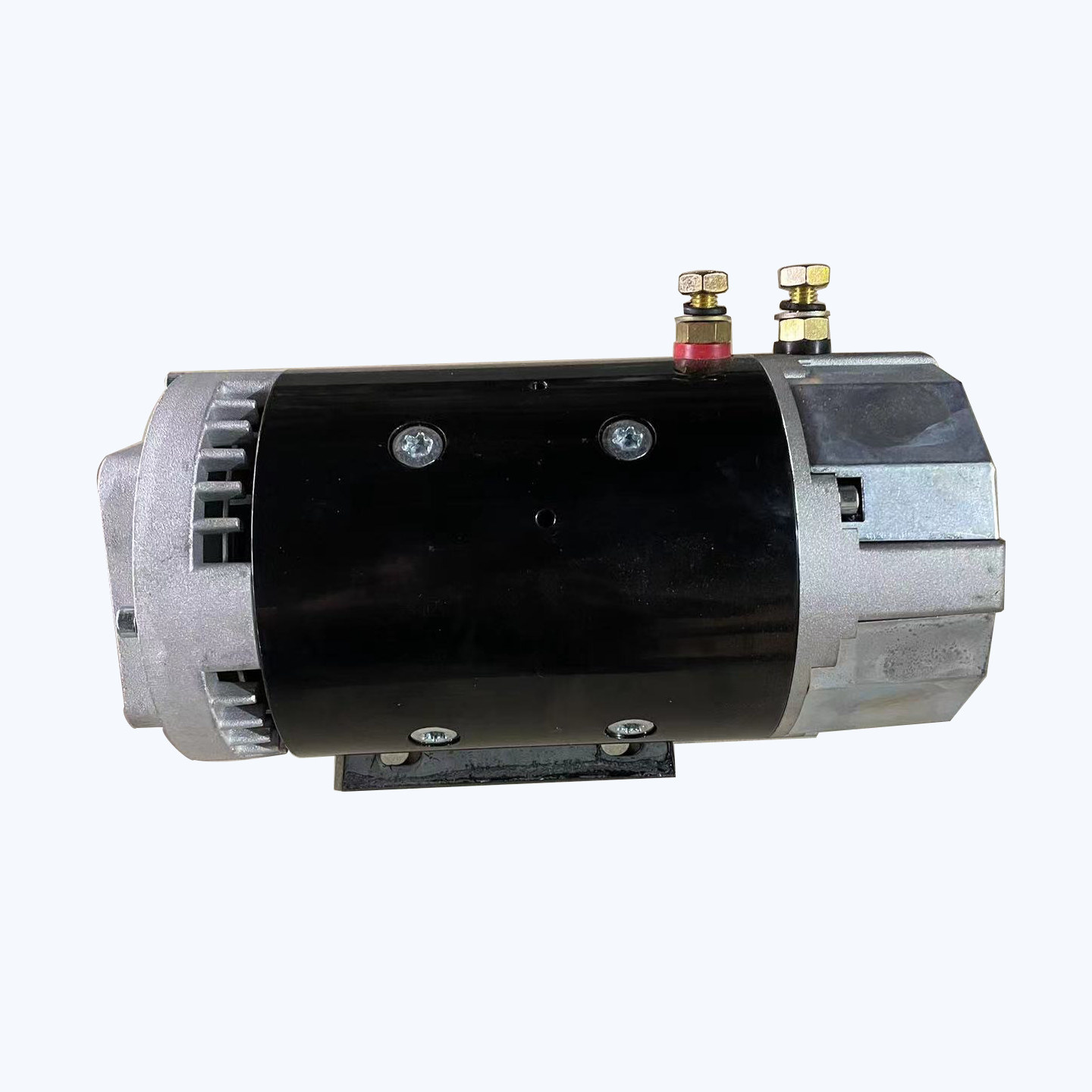

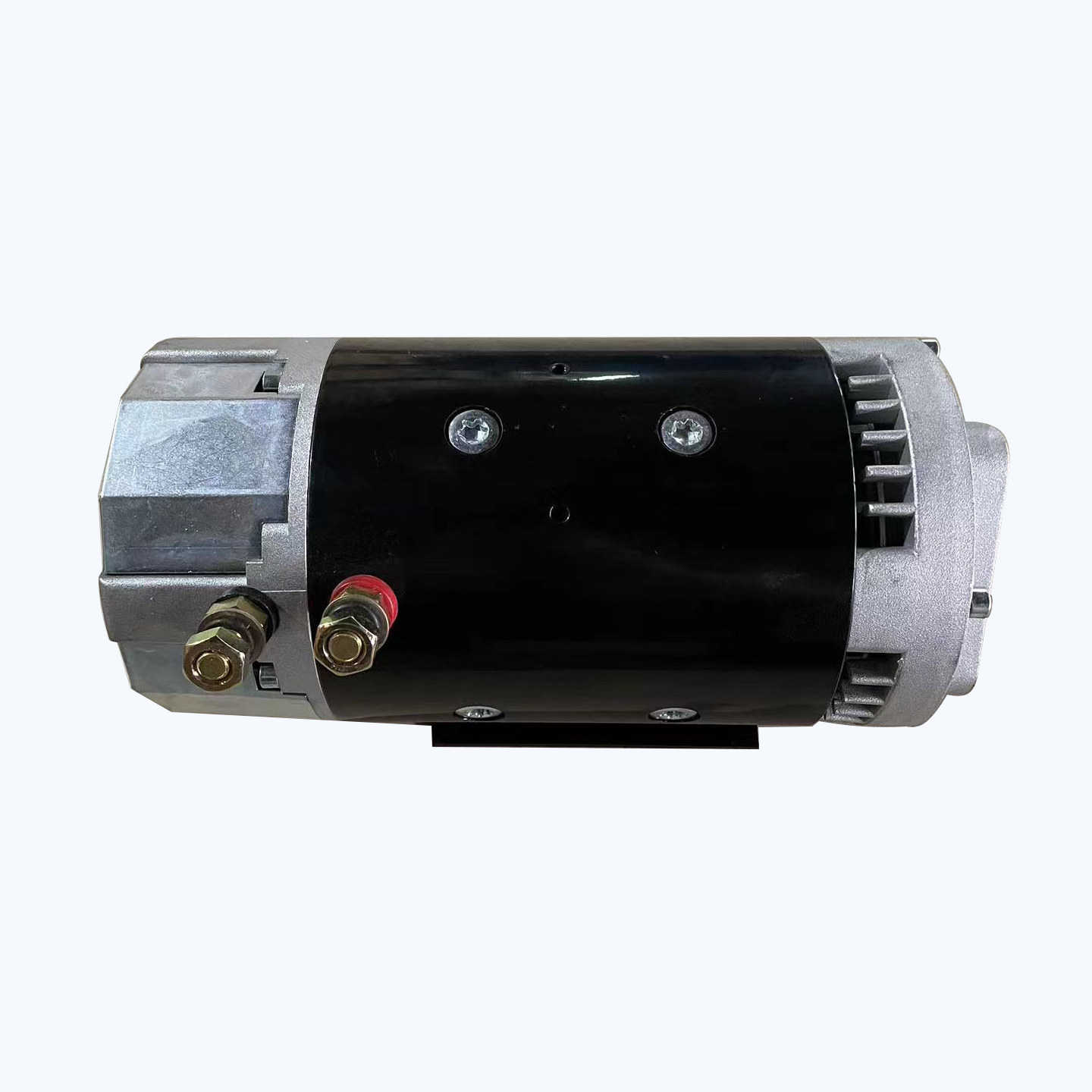

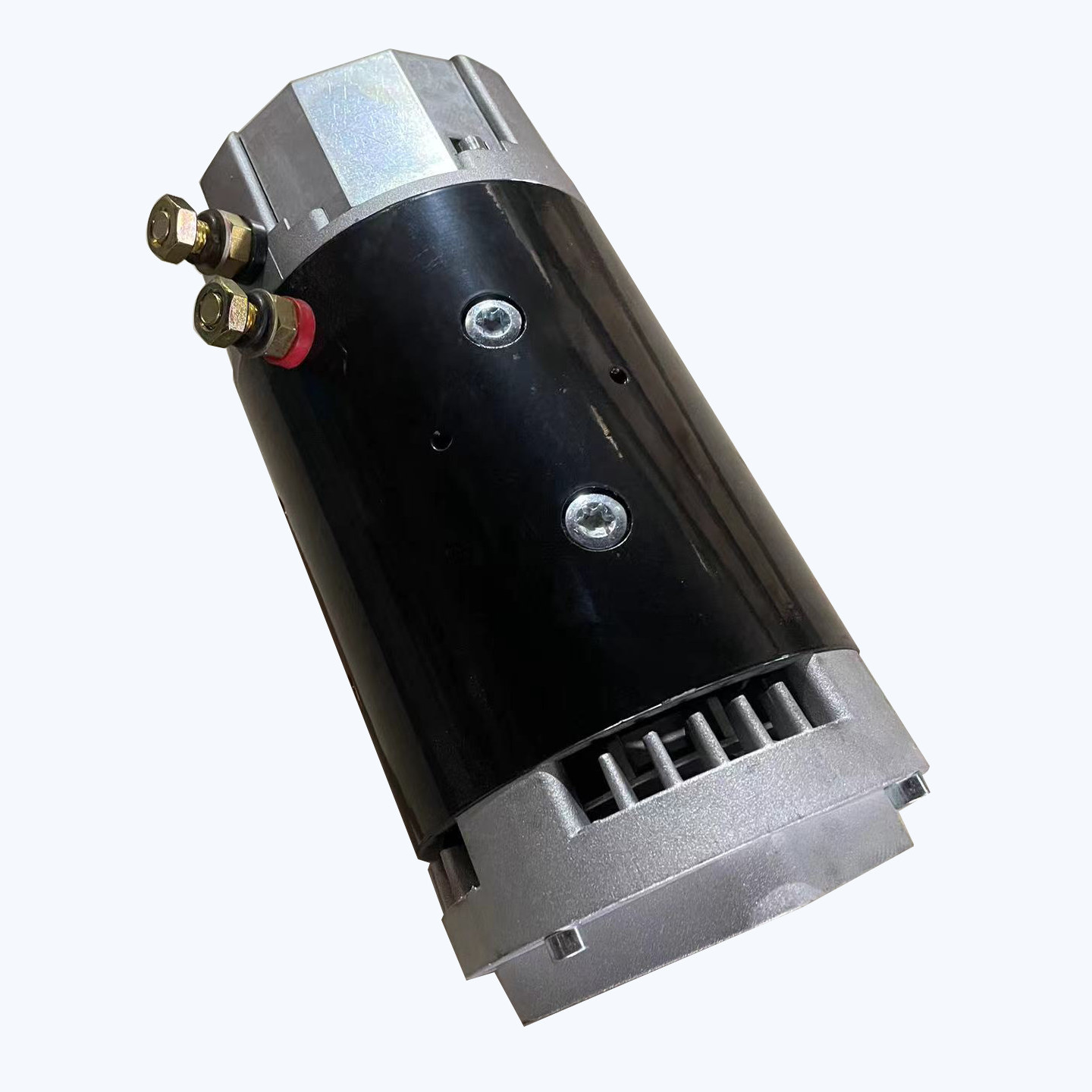

ZD2432 Series Excited DC Motor
Heavy traction power with ultra-high starting torque, engineered for battery-operated industrial vehicles.
Provides powerful low-speed pulling force, ideal for AGVs, tow tractors, electric winches and medium-sized stacking equipment. Featuring no permanent magnets, it withstands severe vibration and high-temperature working conditions without any demagnetization risk.
Product Description
Pinghao offers this model of DC Motors with the following specifications:
Model: ZD2432
Commutation: Brushed
Voltage: 24V
Power: 5.0kW
Current: 260A
Torque: 16N.m
Excitation Type: Series Excited
Working Mode: S2 13min – S3 28%ED
Insulation: F
Poles: 4
No-load Speed: 6000 RPM
Shaft Type: 10-tooth
Rotation: Clockwise
Efficiency: 75%
Winding: 100% pure copper
Dimensions: 28.30 x 14.20 x 15.00
Weight: 17kg
Certification: CE
27 years of DC motor manufacturing expertise.
OEM/ODM supported.
Custom voltage, speed, shaft and mounting configurations available.
ISO 9001-compliant quality assurance procedures.
CE certified.
100% inspection before shipment, see how.
Technical support and after-sales service provided.
