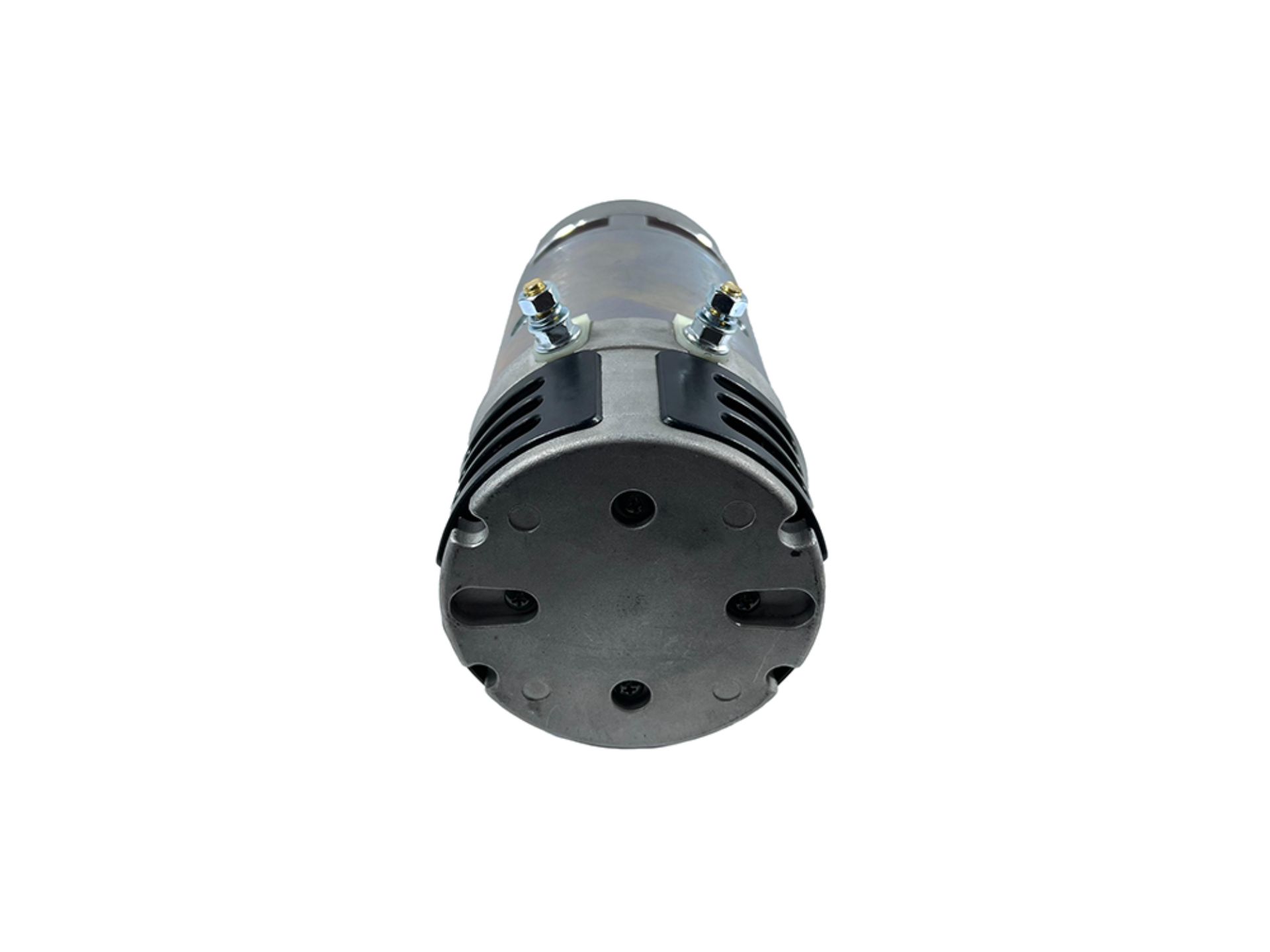

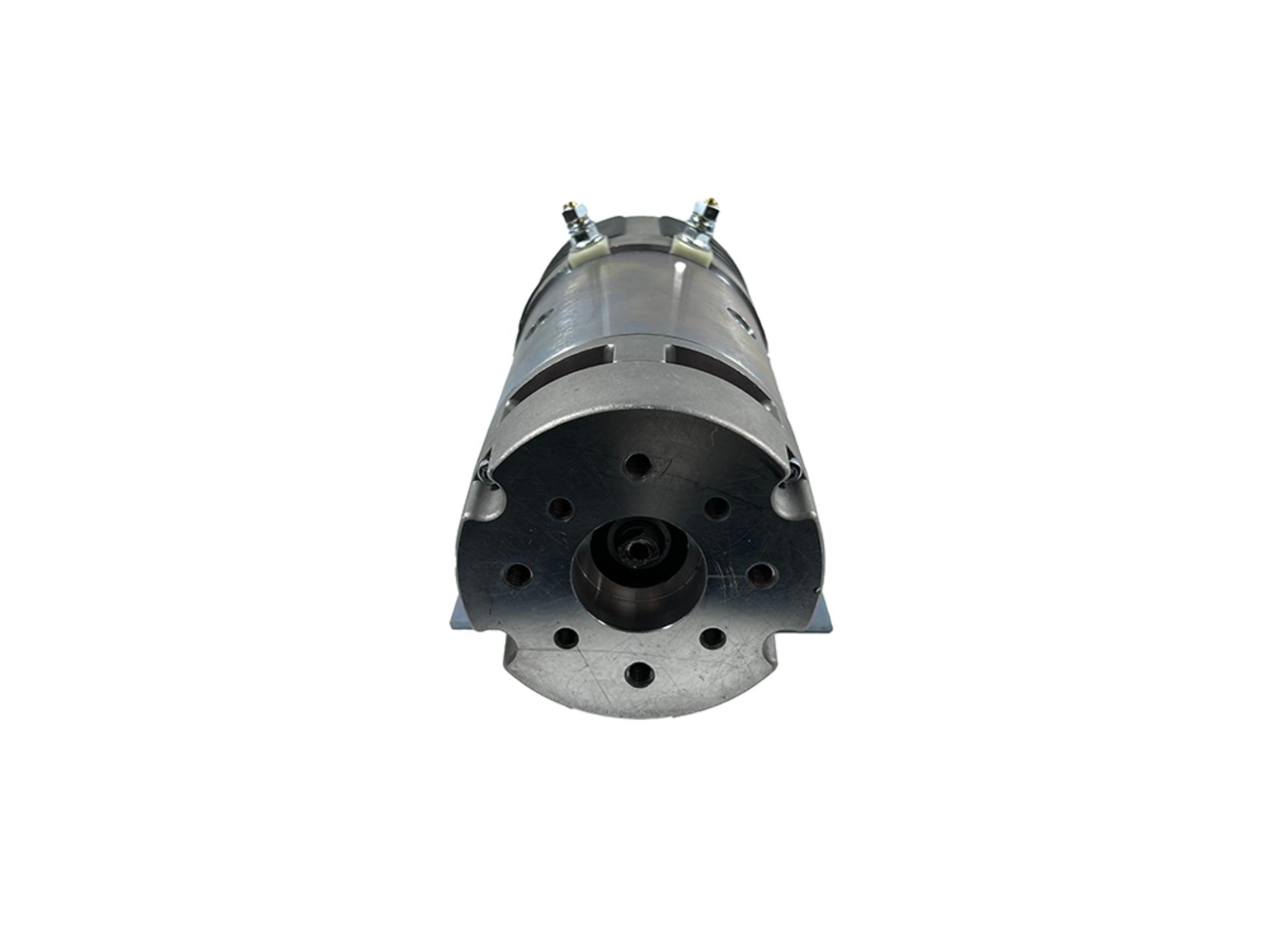

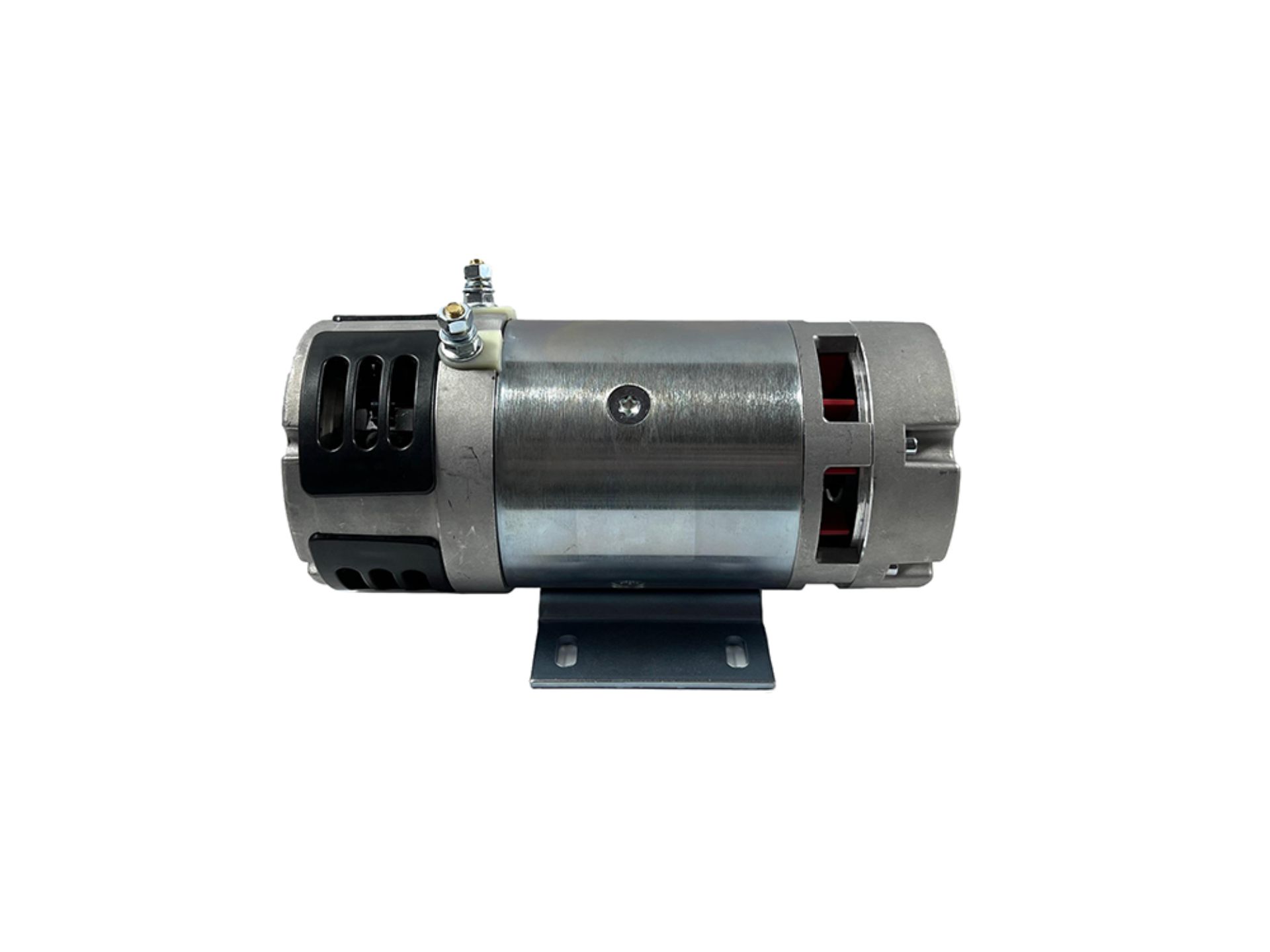

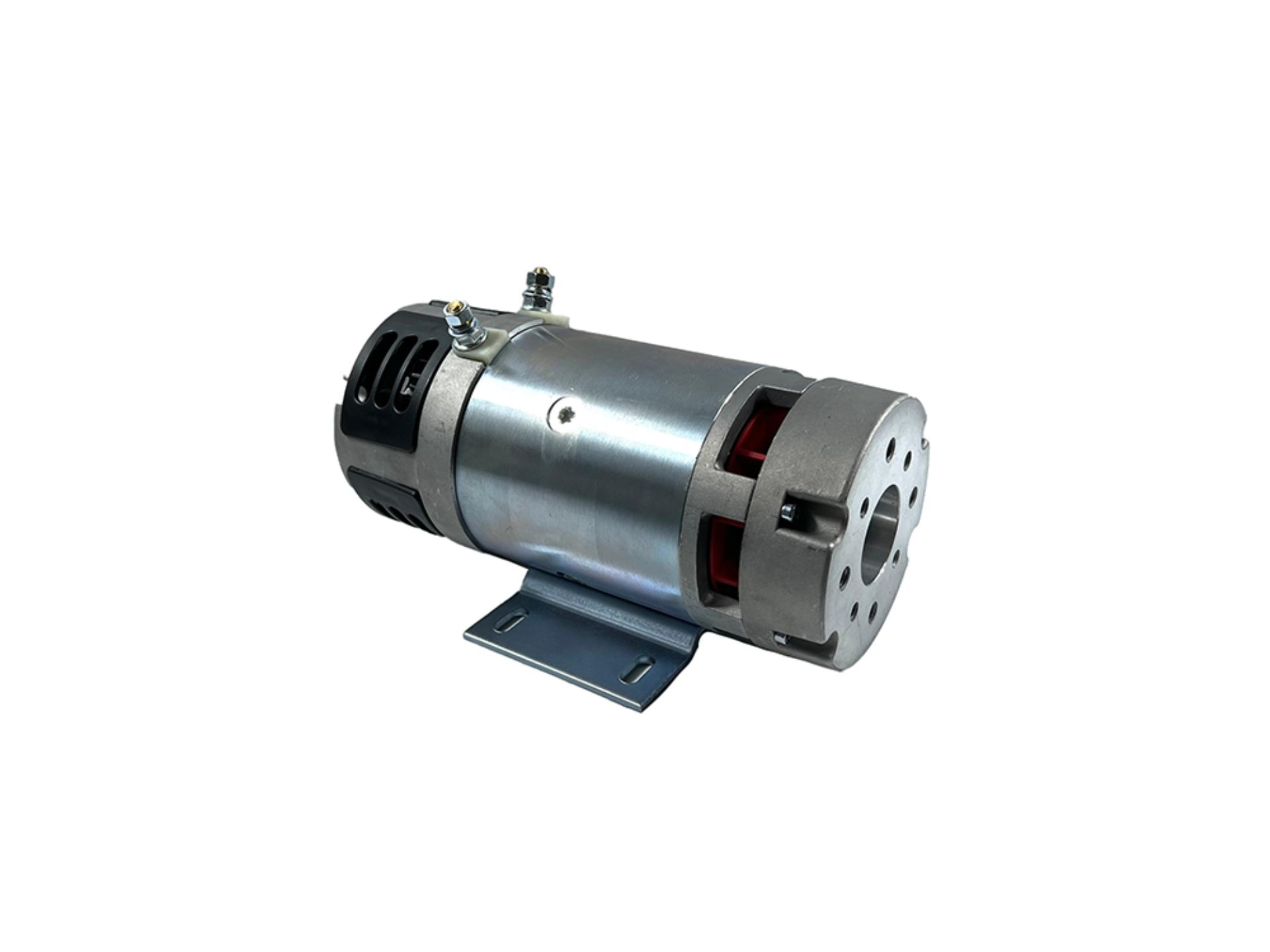

ZD68Y Series Excited DC Motor
A DC motor, runs at low voltage to yield a high output, exhibiting a typical low-voltage, ultra-high-power feature. Primarily designed for three core application scenarios: mobile vehicle and marine equipment, and specialized heavy-duty electric machinery.
Product Description
Pinghao offers this model with the following specifications:
Model: ZD68Y
Commutation: Brushed
Voltage: 24V
Power: 3.0kW
Current: 195A
Torque: 10.0N.m
Excitation Type: Series Excited
Working Mode: S2 2.5min – S3 9%ED
Insulation: F
Poles: 4
No-load Speed: 6000RPM
Shaft Type: Double Flat (v.s. ZD68U with a slotted shaft)
Rotation: Clockwise
Efficiency: 71%
Winding: 100% pure copper
Dimensions: L27.93 x D12.15 (cm)
Weight: 13.0kg
Certification: CE
27 years of DC motor manufacturing expertise.
OEM/ODM supported.
Custom voltage, speed, shaft and mounting configurations available.
ISO 9001-compliant quality assurance procedures.
CE certified.
100% inspection before shipment, see how.
Technical support and after-sales service provided.
