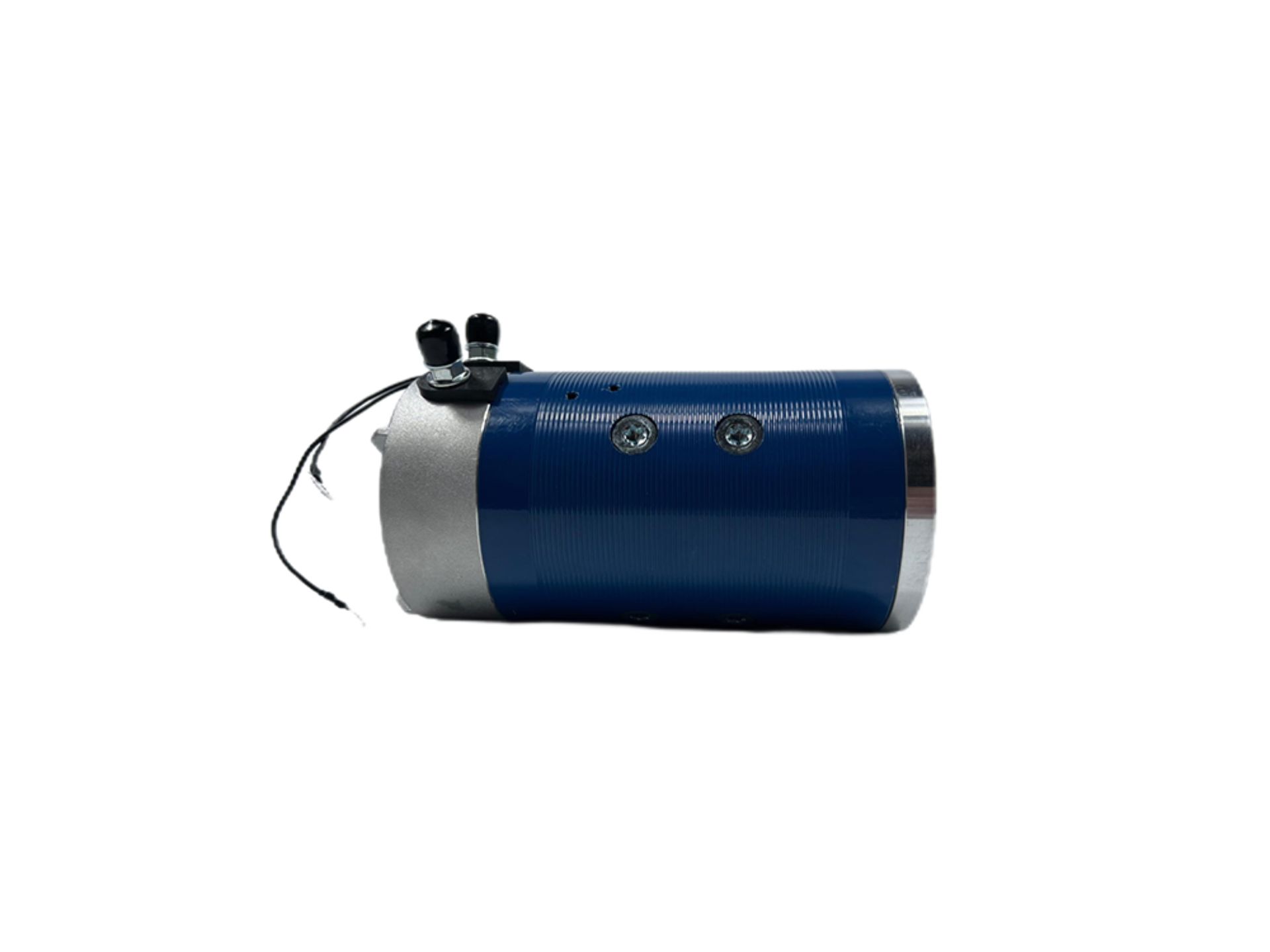

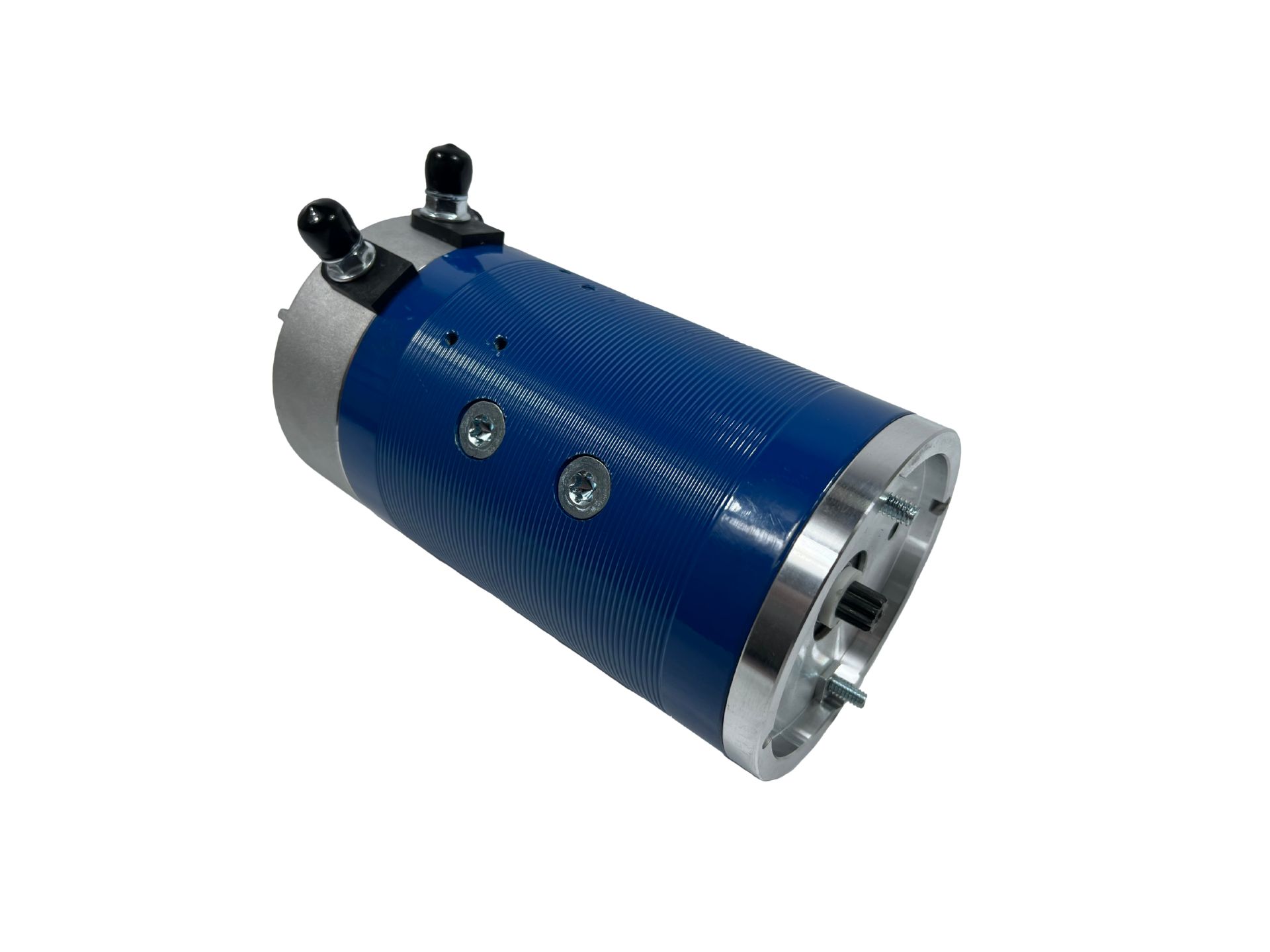

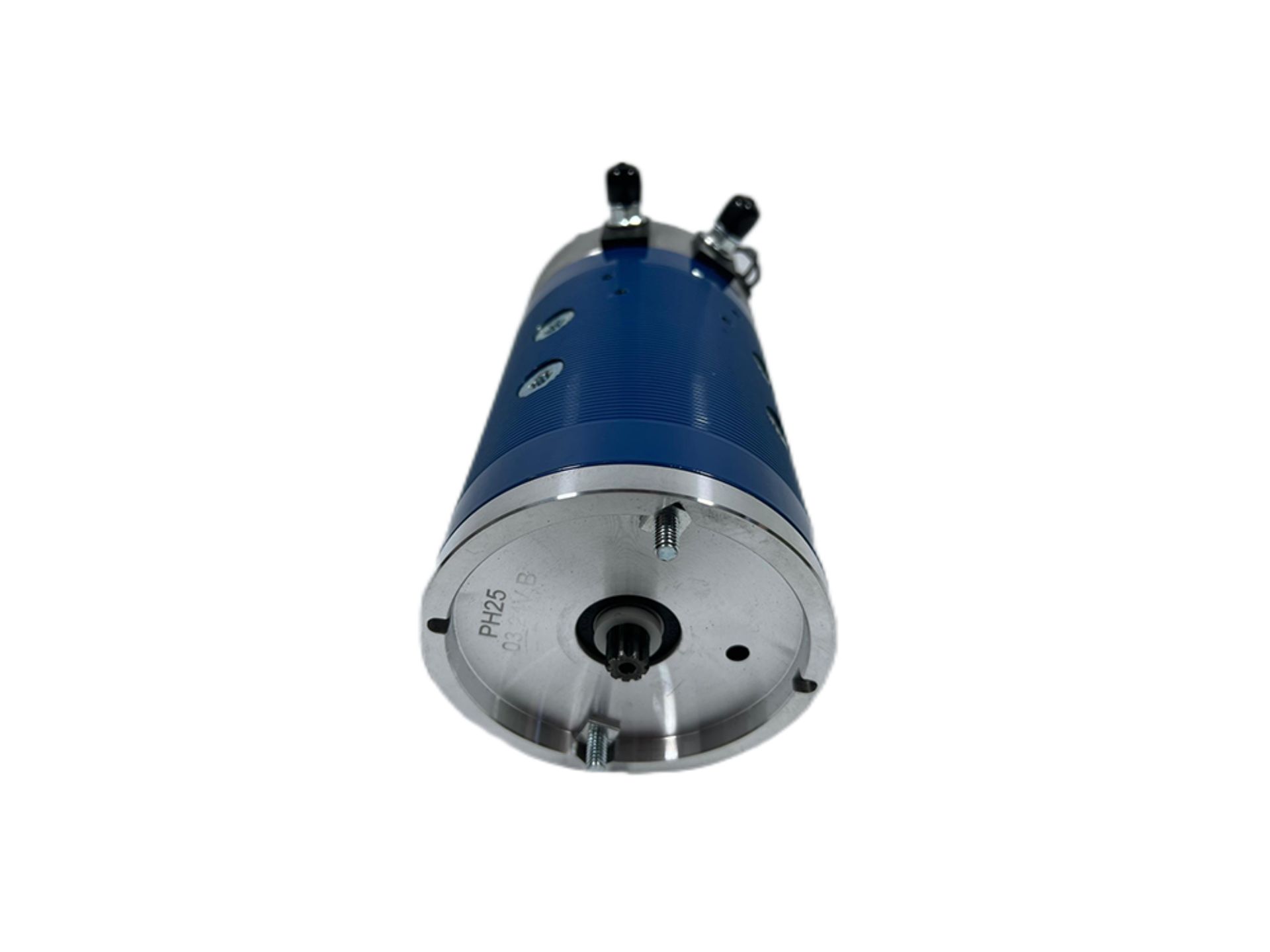

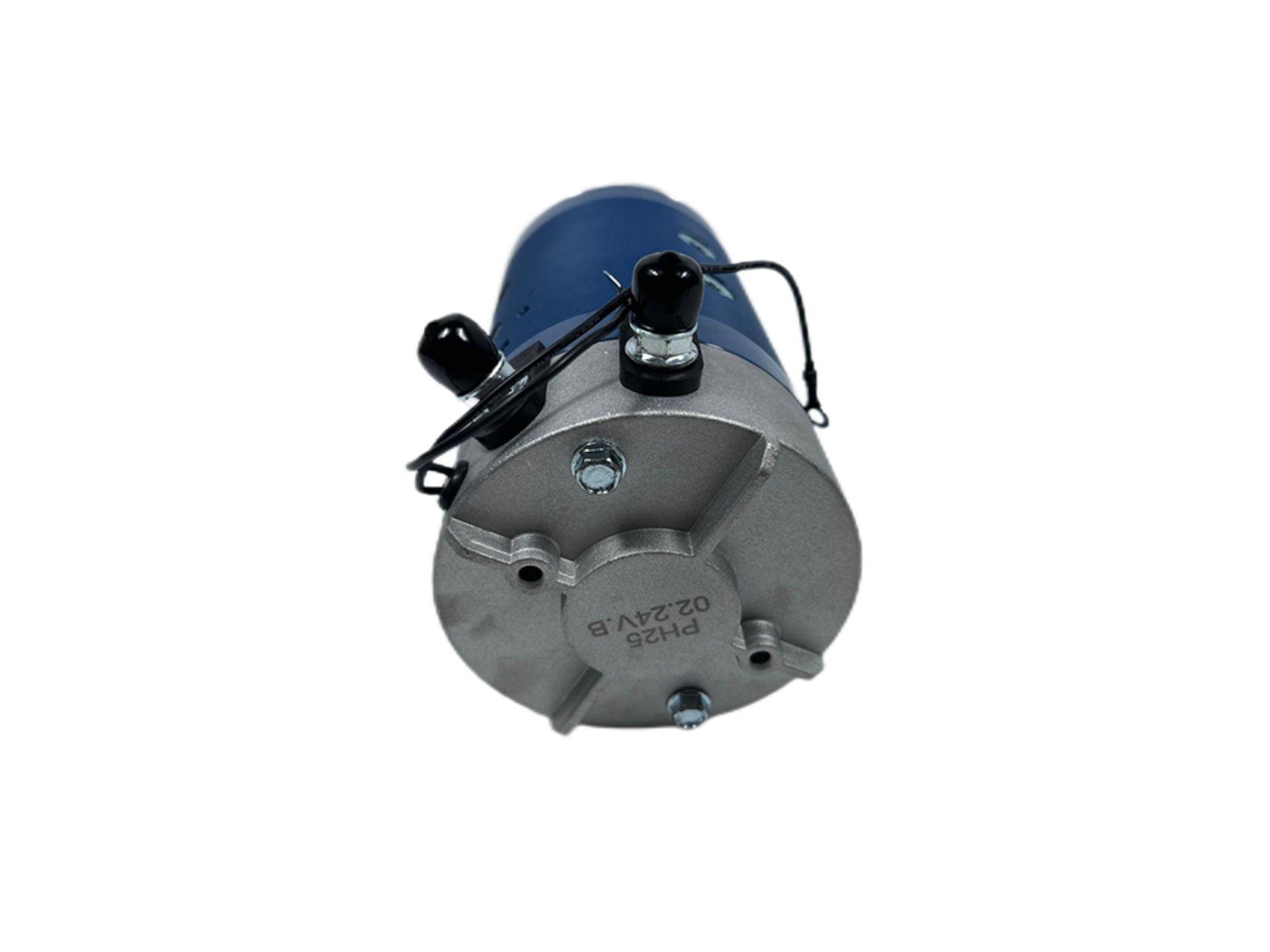

ZD2086 Series Excited DC Motor
A DC motor, runs at low voltage to yield a high output, exhibiting a typical low-voltage, ultra-high-power feature. Primarily designed for three core application scenarios: mobile vehicle and marine equipment, and specialized heavy-duty electric machinery.
Product Description
Pinghao offers this model with the following specifications:
Model: ZD2086
Commutation: Brushed
Voltage: 24V
Power: 2.8kW
Current: 160A
Torque: 8.0N.m
Excitation Type: Series Excited
Working Mode: S2 2.5min – S3 9%ED
Insulation: F
Poles: 4
No-load Speed: 6000RPM
Shaft Type: 9-tooth
Rotation: Clockwise
Efficiency: 71%
Winding: 100% pure copper
Dimensions: L22.10 x D11.40 (cm)
Weight: 10.0kg
Certification: CE
27 years of DC motor manufacturing expertise.
OEM/ODM supported.
Custom voltage, speed, shaft and mounting configurations available.
ISO 9001-compliant quality assurance procedures.
CE certified.
100% inspection before shipment, see how.
Technical support and after-sales service provided.
